Abutment – CAD Design

$6.00

SKU: D - Abutment - Design Categories: , , , ,
Abutment - CAD Design - Image 1
Abutment - CAD Design - Image 2
Abutment - CAD Design - Image 3

Description

Custom Abutment – CAD Design, a precision dental device meticulously crafted for dental restorations. Unveiling a unique CAD/CAM system, this design ensures an exact and customized fit, optimizing the restoration process for dental implants.

This Custom Abutment CAD Design is specifically engineered to deliver unparalleled precision in dental prosthetics. The smooth, low-profile design not only enhances comfort but also adds to the aesthetic appeal of the restoration. Its thoughtful design facilitates superior stability and retention when seamlessly integrated with other dental restorations, ensuring a harmonious and enduring outcome.

The versatility of this abutment design makes it ideal for a wide range of dental prosthesis applications, including bridges and crowns. Whether used in single-tooth restorations or multi-unit prosthetics, our Custom Abutment – CAD Design proves to be a reliable and essential component for dental practitioners across various procedures.

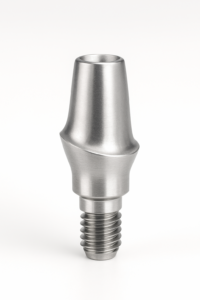

Titanium Abutment: is 1 solid piece of Titanium (no cement).

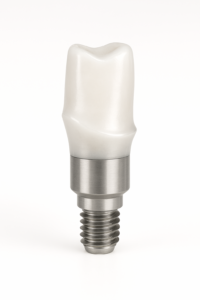

Hybrid Abutment: is a Ti-base with a Zirconia / Emax / etc abutment shape to cement together.

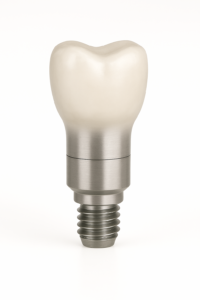

Screwretained Abutment: is a Ti-base with a Zirconia / Emax / etc crown shape to cement together. Hole goes through the crown.

Example 1: If you want a Hybrid or Titanium abutment with a cement retained crown that has a hole through the access hole. Just select the type of abutment, add a crown and put in the notes that you want a access/implant hole through the crown.

Example 2: 3 unit Screwretained bridge (#3-#5). Select the 2 Screwretained Hybrid abutments (#3 and #5), and a crown to the order for the pontic (#4).

If you have questions how to place the order please dont hesitate to ask.



Questions & Answers

Question: What DIM analogs do you use in your model design?
Answer: The compatibility of an abutment design depends on the manufacturer used in its creation. One crucial limitation is that certain abutment manufacturers cannot be combined with different analog manufacturers. For instance, a Dess abutment cannot be paired with a Nobel analog. While some manufacturers have adapted scan bodies from other brands to function within their systems, this is determined on a case-by-case basis. If you have specific analogs you prefer, please indicate the manufacturer in the order notes so we can ensure consistency with that brand.
Question: Can you use the Cerec Scanbodys(Pyramid/triangle shape) to design?
Answer: Currently, that scanbody is exclusive to the Cerec system, and we do not use Sirona software for designing. Because these systems are locked, we recommend switching to a more flexible alternative. One option is the Dess system, which is highly open. Scanbodies can be bought from distributors or directly from Dess. Millions of appliances have been fabricated using their system, offering you the freedom to collaborate with a wide range of partners since it is not a locked system. We suggest exploring various options and not limiting yourself to any one locked system.
Question: Can i do screwretained crowns?
Answer: Certainly, there are 2 options available. 1. ScrewRetained Crown Hybrid, where there it is a crown shape that is cemented to a Tibase. 2. Standard Titanium or Standard Hybrid abutment, which is a prep shape and then you can add a Crown as an option. Once you select the crown there is an option to add a screw hole to make it screwretained.
Question: Do you have a list abutments you offer?
Answer: No we do not have a list since there are so many implant manufacturers. We are in the USA and use 3shape as our design software. If the implant manufacturer has gone through the 3shape FDA approval process than we can design it otherwise its not yet available. If you have purchased your scanbody from a US company than it should be available otherwise just ask what the brand is and we can let you know.

Ask a Question

If you have a question about Abutment – CAD Design product, please ask below.

After submitting the order, you will have access to upload the scans/files for a Abutment – CAD Design.

Patient Information

Please input the name of the patient or case # for record. (Letters, Numbers, and Spaces are the only allowed format)
The typical turnaround time is 24-48 hrs. but not guaranteed. Cutoff Time is 3pm EST.
While we strive to return the design within the requested timeframe, unforeseen circumstances may prevent us from guaranteeing this. Rest assured, you will not be charged any extra fees if the files are not returned on time.
If you have multiple scans that need to have meshed together or scans are extremely bad and need to be cleaned up and smoothed, please select the option below.

Abutment Design Information

Universal Numeric Notation tooth numbers are what is listed. Please use the chart to indicate the correct numbers to correspond for your system ( FDI, Palmer )
Universal Numeric Notation tooth numbers are what is listed. Please use the chart to indicate the correct numbers to correspond for your system ( FDI, Palmer )
external
Please select what the tooth position is for this abutment.
Indicate the manufacturer of the Implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Indicate the size/type of the implant
Please include the Manufacturer and Size/Type used.
The manufacturer of Scan Body company. Serial #'(s) are very helpful
See Information about Abutment Types below.
Please input the Tibase product # that way we can design the correct Tibase for your restoration.
If using a Dess Tibase they have 2 gap settings. Which is the space between the Tibase and Crown/Abutment top/coping/etc.
If you would like us to use the Dess Angulated Blank, please select this option so its used in the design. Otherwise it will be a straight Titanium Blank.
Add an Abutment
Please note: For a Titanium abutment the guide will be for the abutment shape. If its a Screw Retained Ti-Base abutment then it will be for the crown shape. If you add a crown to a titanium abutment, the guide will still be for the abutment shape and not the crown.
Please explain how you would like the guide sectioned

Crown/Coping Add-On

If you would like a coping / crown design added to the order
Universal Numeric Notation tooth numbers are what is listed. Please use the chart to indicate the correct numbers to corespond for your system ( FDI, Palmer )View Chart
If you would like a discount on designs, please submit cases through 3shape communicate and you will receive a 50% discount. Please indicate which teeth need to be repaired on the scan.
Please indicate the type of restoration being fabricated. Helps determine minimum thickness values.
Will this restoration contain a bridge, if so select yes
Please select the pontic type you would like the bridge to be designed as.
Is the restoration involved with a current partial or going to fit a future partial?
Please include information on how you would like the restoration to be fabricated for future partial setup
Do you need a screw access hole placed in the crown. If its a specific abutment crown and not all please indicate in notes which one.

Implant Model Add-On

If you would like a model design added to the order
Minimum thickness value of the model
If you would like side drain holes added please indicate.
Trim away Tissue to where crown would seat down
Removable Gingiva Tissue around the Arch
Are you wanting the model to have cutouts for physical analogs for digital model
Select rough estimate of where the implant analogs are on the model. This is for placing physical DIM analogs, most DIMS will correspond to the Scanbody manufacturer.
Would you like case number or name placed on the model
Engraved( Inset of Base) or Embossed ( Outset of Base)
Input what you want added to the model

Additional Information

Add any additional information pertaining to the case.
Product total
Options total
Grand total
